Custom Metal Bending Services

ZigiTech delivers a precision Metal Bending Manufacturing Service for product teams that need stable angle control, practical lead times, and dependable quality from prototype through low-volume production.

  • Custom metal bending for stainless steel, structural steel, and aluminum parts
  • Press brake and roller workflows for V-shape, U-shape, and custom angle profiles
  • Reliable support for prototypes, bridge builds, and low-volume Manufacturing Service needs
  • Structured DFM feedback from ZigiTech, your trusted Machinery Parts Manufacturer
Start to Upload Your Files
All file uploads are fully secured and kept strictly confidential.

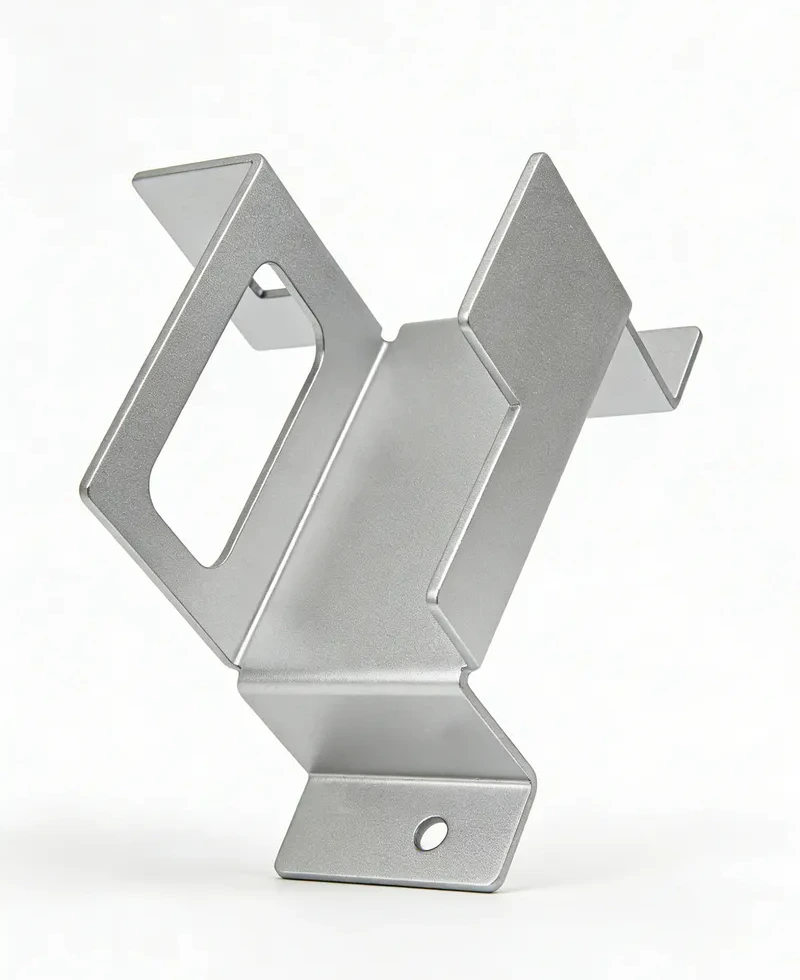

Custom metal bending service hero image
Amtivo certification logo
ISO 9001:2015 certification icon
AS9100D certification icon
24h
DFM response target
±0.10 mm
Bending tolerance capability
Prototype
To low-volume production
Secure
CAD file handling

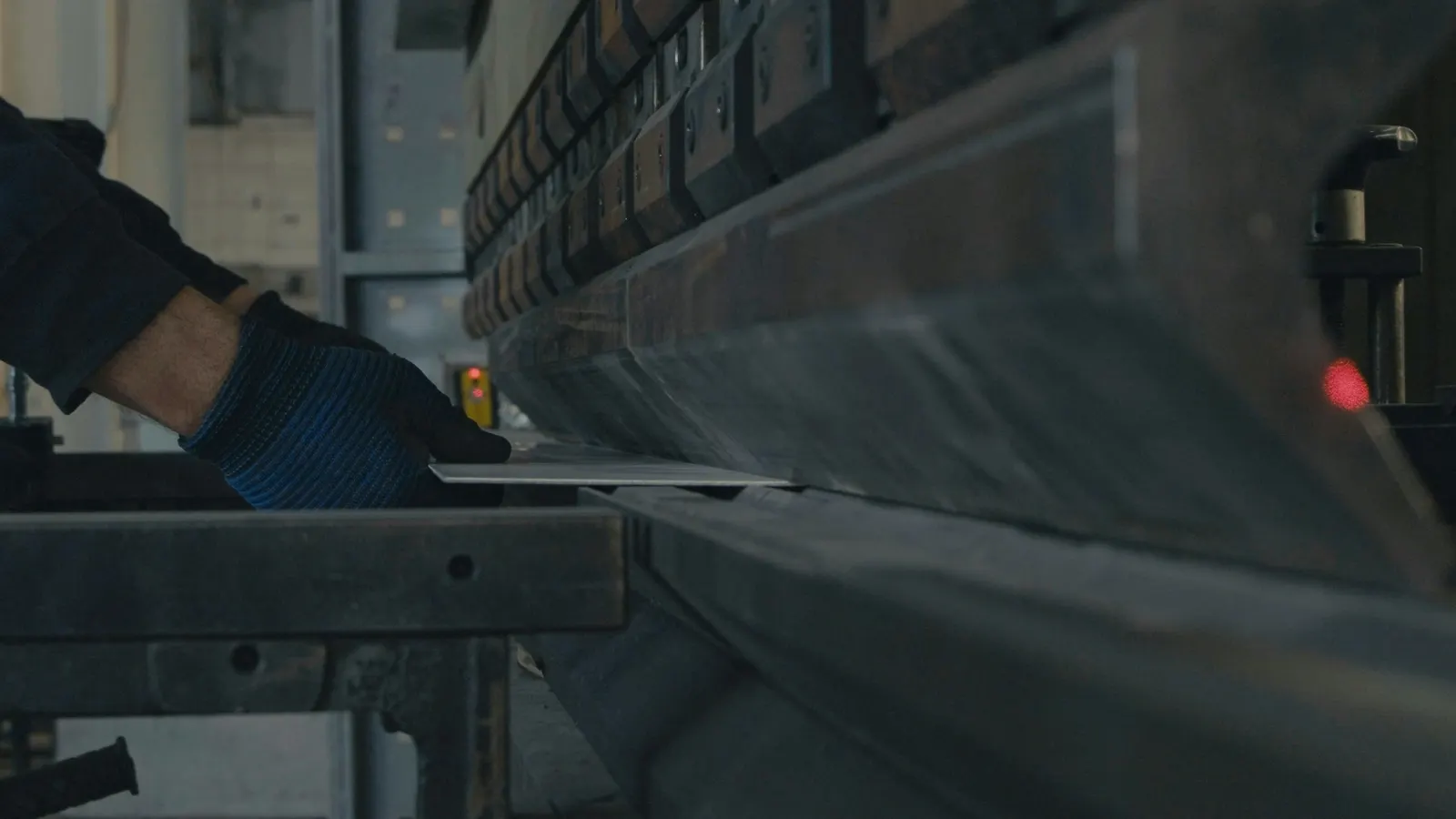

Sheet metal bending process with a press brake and formed angle profile

What Is Metal Bending?

At ZigiTech, metal bending is a precision sheet metal process where force forms stainless steel, structural steel, or aluminum into controlled angles, commonly V or U profiles. As a Metal Processing Company and Machinery Parts Manufacturer, we use press brakes and rollers to deliver repeatable bends for prototype and production components.

Sheet Metal Bending Methods

More than one bending method can produce the same part profile, but the right choice depends on angle accuracy, springback control, and production volume. As a Metal Processing Company and Machining Manufacturer, ZigiTech matches each method to your geometry and delivery target.

A common process where a punch presses the sheet into a V-shaped die to form controlled angles for general-purpose parts.
The punch does not bottom out in the die, leaving clearance that provides flexible angle control and efficient setup.
The sheet is pressed to the die bottom to create a defined bend with improved repeatability and reduced springback.
High force sets the bend zone precisely, making this method suitable for tight-angle tolerance and intricate features.
Forms parallel walls and a flat base, often used for channels, brackets, and enclosure parts with consistent depth control.
Rollers gradually form the sheet into curves or cylinders, ideal for large-radius and rounded metal components.
Uses rotating tooling to form bends while helping protect surface condition on visible or finish-sensitive parts.
A sequence of short bends approximates a larger radius when smooth curved geometry is needed without dedicated roll tooling.

Faster Quoting for Production-Ready Parts

For eligible parts within the 10 mm x 10 mm to 200 mm x 200 mm range, standard lead time can start from 3 days. Upload your CAD file to confirm suitability.
01

Share the Part Design

Upload the model to kick off a fast technical review.

Upload part design to start technical review.
02

Review Quote & DFM Notes.

See immediate cost guidance plus practical feedback for efficient production.

Review immediate quote and DFM notes.
03

Lock in Manufacturing Details.

Sign off on the final requirements before machining or molding begins.

Lock in manufacturing details before production.
04

Delivery in Motion.

Finished parts move from production control to outbound shipment.

Finished parts move to outbound shipment.

Available Metal Bending Machines

ZigiTech supports multiple bending machine platforms to match sheet thickness, material behavior, and tolerance targets. This Manufacturing Service setup helps our Machining Manufacturer team handle both thin-gauge parts and heavy-duty industrial components with practical lead times.

Get Instant Quote
Machine TypeDescription
CNC Press BrakeHigh-precision bending for aluminum, stainless steel, carbon steel, and brass sheets.
Hydraulic Press BrakeHeavy-duty bending for thick steel plates, iron sheets, and stainless steel panels.
Servo-electric Press BrakeFast, energy-efficient bending for thin aluminum, copper, and stainless steel sheets.
Manual Pan BrakeQuick bending of light-gauge aluminum, galvanized steel, and soft metal panels.
Rotary Bending MachineSmooth, mark-free bending for polished aluminum and stainless steel sheets.
Automated Panel BenderHigh-speed panel bending for large aluminum, steel, and stainless steel enclosures.

Advantages of Sheet Metal Bending Process

Versatile and Complex Design

ZigiTech uses sheet metal bending to create everything from simple brackets to multi-angle production parts, helping teams reduce part count while keeping assemblies clean and practical.

Strength Without Extra Weight

Well-controlled bends reinforce edges and profiles without adding unnecessary mass, supporting durable components with strong mechanical performance.

Cost-Effective and Efficient

Our CNC bending workflow cuts down on material waste, secondary welding, and assembly time, making it a practical Manufacturing Service choice for prototypes and repeat runs.

Material and Application Flexibility

The process supports aluminum, stainless steel, carbon steel, and copper for industrial, aerospace, automotive, and consumer-product programs.

Metal Bending Materials

ZigiTech supports a broad selection of sheet and plate materials for metal bending, helping engineers balance forming behavior, structural strength, corrosion resistance, and end-use appearance across production programs.
Metal Alloys
Stainless Steel material sample for CNC machining and manufacturing

Stainless Steel

Review stainless steel CNC machining guidance for 303, 304, 316, 17-4 PH and related grades with long-tail use cases, finishes, and design notes.

Price
Available Finish
As machined, electroplating, passivation, powder coating
Characteristics
Corrosion resistant / Strong / Good surface quality
Alloys
416, 15-5, 301, 430, 440C, 420, 304/304L, 2205 Duplex, 17-4 PH, 303, 316/316L
Color
Metallic silver
Lead Time
About 7 business days

FAQ

CNC sheet metal bending is a manufacturing process that forms sheet metal into precise angles or profiles with computer-controlled equipment. It helps ZigiTech deliver repeatable geometry, consistent angle control, and tighter process stability for complex or production-oriented parts.
The bend rule refers to the formulas and design guidelines used to predict how sheet metal behaves during forming. It accounts for bend allowance, bend radius, material thickness, and bend angle so finished dimensions stay aligned with drawing intent. ZigiTech reviews these factors during DFM to improve manufacturability.
Typical bending tolerances depend on material, thickness, tooling, and machine setup. In many projects, bend angles fall within about plus or minus 1 to 2 degrees, bend-line locations often stay within about plus or minus 0.5 mm, and overall dimensions vary with part size and geometry.
Bending forms a single sheet into an angle or curve without joining separate parts. Welding joins two or more metal pieces with heat. The right method depends on the part structure, load requirement, appearance target, and manufacturing efficiency needed for the assembly.
Cutting and bending are closely linked in sheet metal fabrication. Cutting defines the flat blank and feature geometry first, while bending forms that blank into the final shape. Combining both operations in one workflow helps maintain dimensional control and more efficient production planning.
