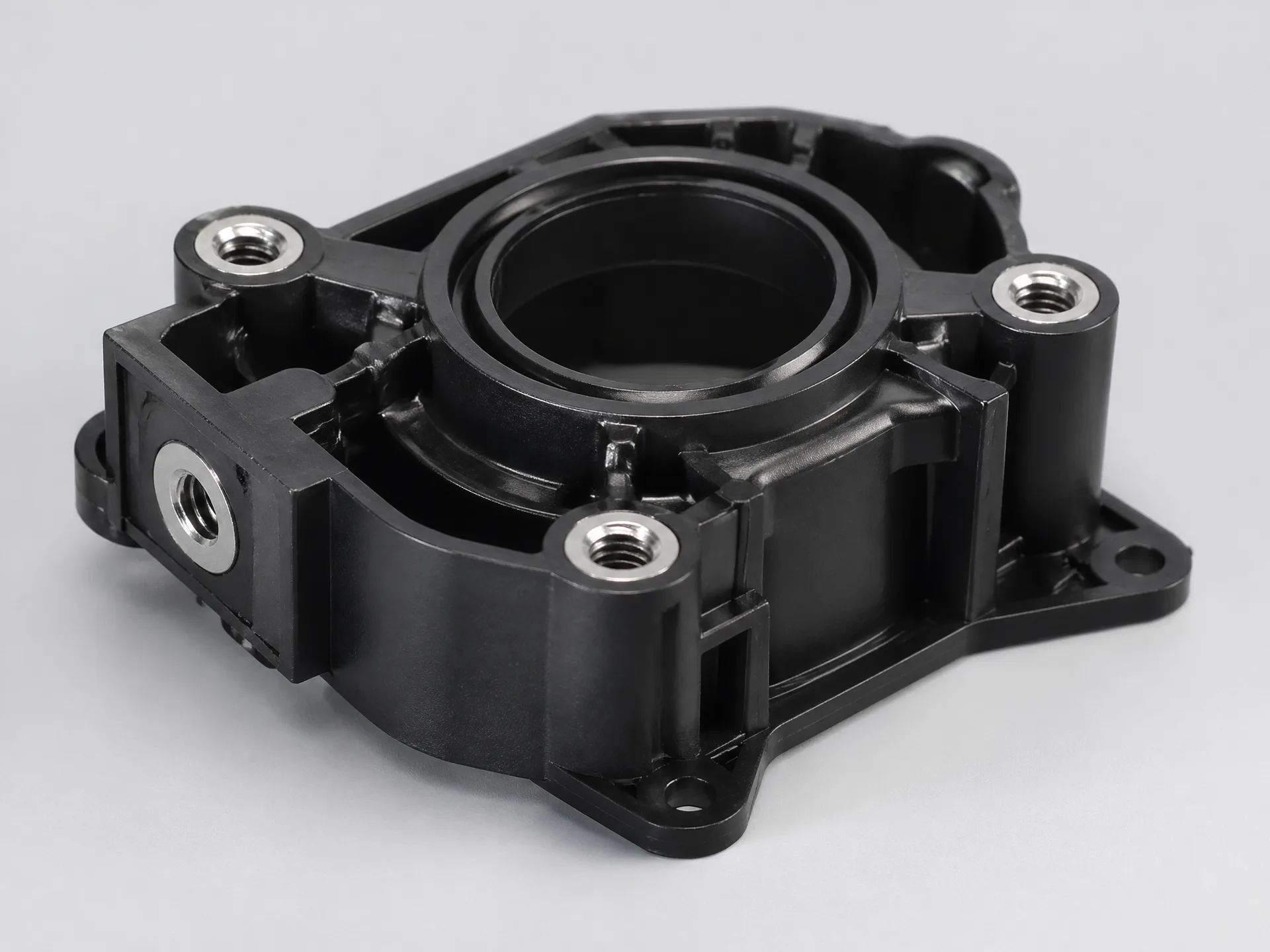

Insert molding part with integrated metal hardware and molded plastic body
Amtivo certification logo
ISO 9001:2015 certification icon
AS9100D certification icon

Insert Molding Service

ZigiTech delivers insert molding solutions for product teams that need secure metal-to-plastic integration, reduced assembly steps, and dependable part retention from pilot validation through production release.

  • right Factory-direct insert molding for metal, ceramic, and engineered plastic inserts
  • right Injection Molding Services that reduce secondary assembly and retention risk
  • right Rapid Tooling, pilot builds, and Low-volume Manufacturing support in one workflow
  • right Stable project communication from DFM review through production release
Start to Upload Your Files
right All file uploads are fully secured and kept strictly confidential.
0 -shot
Insert encapsulation workflow
Metal +
Plastic and hardware integration
0 %
Inspection before shipment
Global
Project response support

What Is Insert Molding?

Insert molding places a metal, ceramic, or engineered plastic insert in the mold before resin is injected, creating one integrated part with stronger retention and fewer downstream assembly steps.

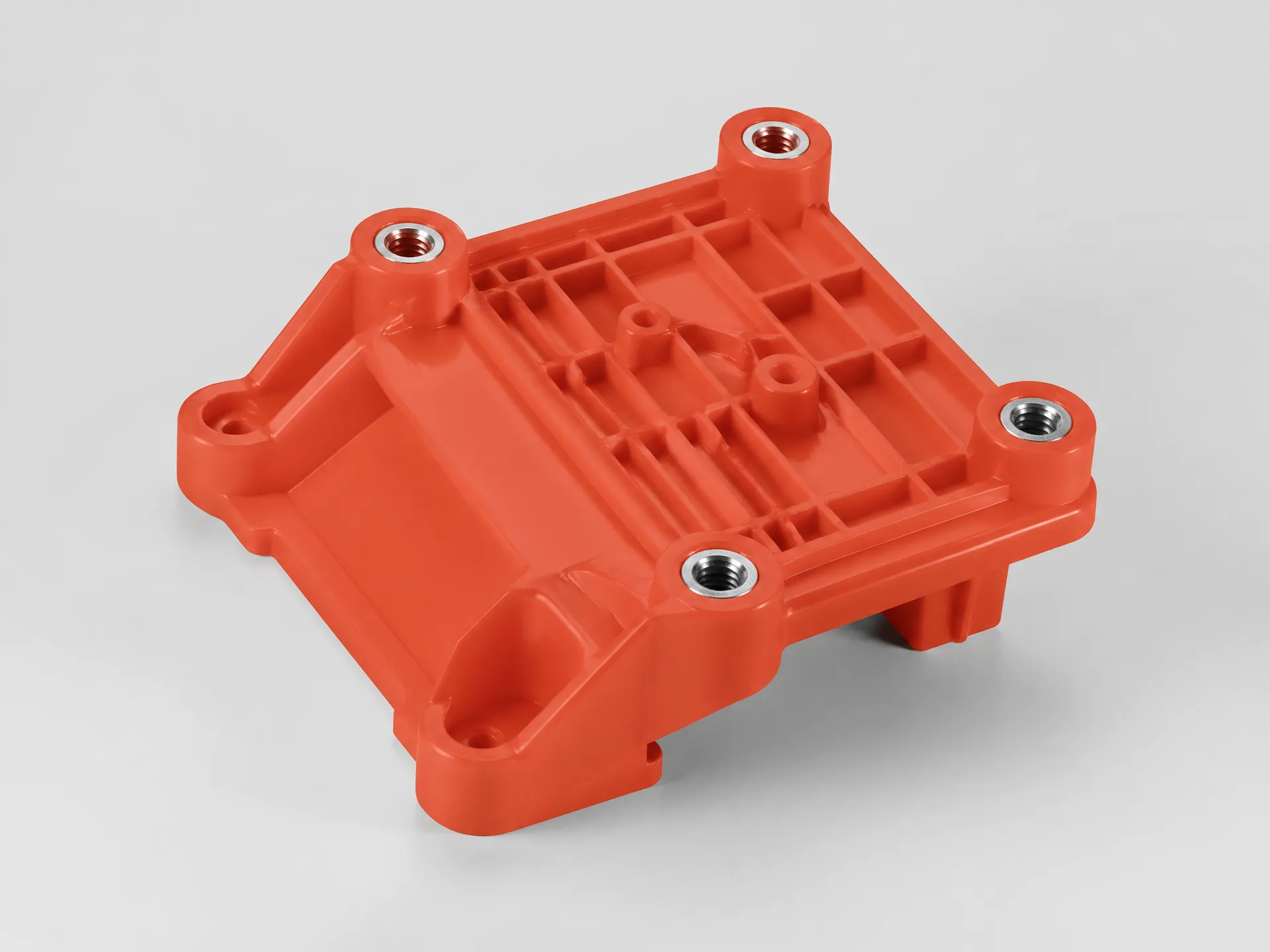

Insert molded component with integrated hardware inside a plastic part

Insert molding is an advanced Injection Molding Services process in which ZigiTech positions a metal, ceramic, or engineered plastic insert inside the mold before resin is injected around it. As the material cools, the insert and molded body become one integrated component, helping us craft parts with stronger retention, dependable conductivity, and improved structural stability. This method is ideal for threaded inserts, terminals, bushings, and reinforced housings because it reduces downstream assembly, supports Low-volume Manufacturing as well as production scale-up, and creates a durable bond between hardware and molded plastic.

Get Quote

Insert Molding Tooling Solutions

ZigiTech supports custom insert molding programs with design optimization, resin-and-insert selection, and Mold Tool Making strategies engineered for complex geometries from concept validation through production release.
Prototyping

Rapid Tooling

Get clearer design feedback and functional validation through premium-grade Rapid Tooling. ZigiTech can fabricate small batches of molded parts for pilot review, helping teams confirm fit, retention, and market readiness while keeping tooling investment cost-effective before full-scale production.

Learn More
Production

Production Tooling

We engineer durable production molds for repeatable insert molding programs that require stable retention and efficient output. By aligning tool steel selection, insert positioning, and process planning, ZigiTech helps customers scale from Low-volume Manufacturing to long-run part supply with dependable quality.

Learn More

Streamlined Path to Production Parts

From single prototypes to low-volume batches, our workflow adapts to your program needs with responsive lead times.
01

Submit Your RFQ

Upload drawings and specify quantities, materials, and tolerances.

Upload CAD files and project requirements.
02

Engineering Review

Our team analyzes geometry, flags risks, and suggests optimizations.

Review instant pricing and DFM guidance.
03

Confirm & Launch

Approve the final quote and production plan to start manufacturing.

Approve manufacturing details before production starts.
04

Quality & Delivery

Parts undergo inspection before secure packaging and global shipment.

Finished parts prepared for shipment.

Insert Molding Capabilities

ZigiTech insert molding solutions are engineered for parts with specific functional and visual targets. These design guidelines help improve manufacturability, shorten development lead time, and support cleaner component presentation across Injection Molding Services programs. Review the standard considerations below when planning insert geometry, wall balance, and validation.
Capability references

Metric and imperial guidelines, validation checkpoints, and inspection options used to scope insert molding programs.

Standards Description
Maximum Part Size 800 x 1000 x 400 mm 31.50 x 39.37 x 15.75 in.
Minimum Part Size 2 x 2 x 2 mm 0.08 x 0.08 x 0.08 in.
Substrate Wall Thickness From 0.5 to 3 mm From 0.20 to 0.12 in.
Tolerance +/- 0.025 mm +/- 0.00098 in.
Inserts Female and male inserts are both supported to improve component appearance, retention, and utility.
Mold Validation Provide T0, T1, and T2 samples before mass production
Inspection and Certification Options First Article Inspection, ISO 9001, ISO 13485
Lead Time From mold making to sample delivery: 15-45 business days

Advantages and Applications of Insert Molding

Insert molding helps reduce assembly effort, improve part durability, and support multi-material product design across industries that need secure hardware integration and dependable molded performance.

Advantages of Insert Molding

Insert molding helps reduce assembly labor, reinforce part reliability, and support multi-material component integration for products that need both structural and cosmetic performance.

  • Eliminate assembly: We engineer insert molded parts as one integrated manufacturing process, reducing downstream joining steps.
  • Reduce costs: Fewer secondary operations can lower total program cost compared with separate molding and assembly workflows.
  • Reduce part size and weight: Insert molded components can stay lighter and more compact than comparable all-metal constructions.
  • Improve part strength: Secure insert retention helps enhance wear resistance and structural integrity over traditional assembly methods.

Applications of Insert Molding

Insert molding is suitable for prototype validation and full production programs across multiple industries. Key application areas include the following engineered product categories:

  • Consumer goods: A strong fit for products that need both functional utility and refined appearance in one molded assembly.
  • Medical devices: Biocompatible material selection supports instrument housings, handheld tools, and selected implant-adjacent components.
  • Aerospace and automotive: Insert molding is valued where strength, retention stability, and durable performance are critical.
  • Communication devices: Useful for connectors, housings, controls, and other compact parts that benefit from integrated hardware.
